Rigid-Flex PCB
Rigid and flexible sections in one board, removing connectors and cables from the assembly.
Last updated
Rigid-Flex PCB samples
-
4L rigid-flex board, rigid 0.6 mm / flex 0.1 mm, immersion gold 2 µm
-
Rigid-flex PCB, rigid thickness 1.2 mm
About Rigid-Flex PCB

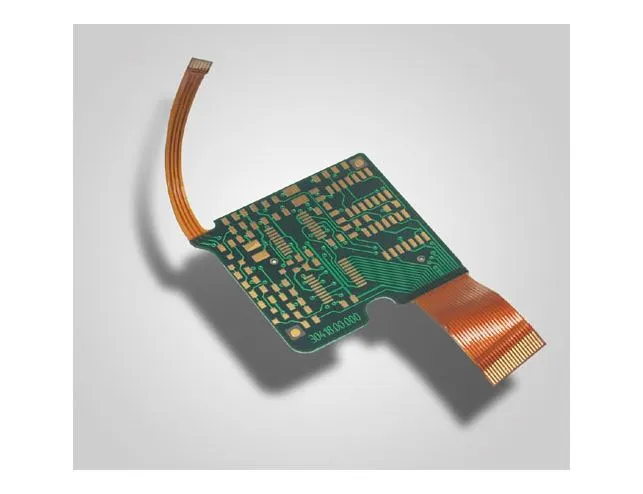

Rigid-flex boards combine rigid FR4 sections and flexible polyimide layers in a single laminated board. The flex areas act as built-in cables, which removes connectors and harnesses, saves space and weight, and eliminates a common point of failure.
We supply rigid-flex boards such as 4-layer builds with 0.6 mm rigid sections, 0.1 mm flex and an immersion gold finish, and designs with 1.2 mm rigid thickness. Rigid-flex suits products that must fold into a tight enclosure.
Typical applications
- Medical devices
- Aerospace and defense electronics
- Cameras
- Wearables
- Industrial sensors
Common questions
Is rigid-flex more expensive than separate boards and cables?
The bare board costs more, but it can lower the total cost by removing connectors, cables and assembly steps, and it improves reliability.
What should I check in a rigid-flex design?
Keep vias and components away from the rigid-to-flex transition, respect the minimum bend radius, and route traces across the flex area at right angles to the bend.
Have a board to build?
Send us your Gerber files and requirements. Our team will review your specifications and get back to you with a quote.
