Flexible PCB (FPC)
Flexible printed circuits on polyimide for products that bend, fold or need to save space and weight.
-

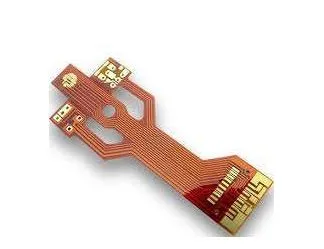

6L FPC, thickness 0.235 mm, min. hole 0.2 mm, 2.5/2.5 mil
-
4L flex circuit, 0.1 mm hole, PI stiffener 0.025 mm
-
2L immersion gold flex circuit board, thickness 0.235 mm, 1 oz, PI stiffener 3 mil
HDI PCB
High-density interconnect boards with fine lines, micro-vias and small holes for compact, high-performance designs.
-

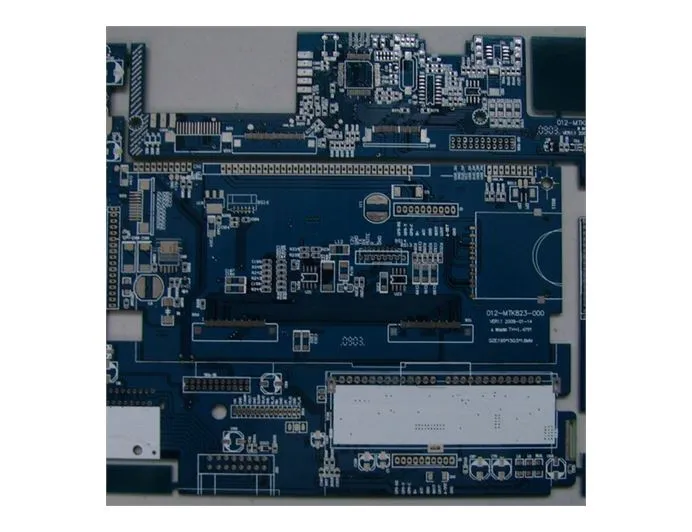

4L FR4 HDI board, thickness 1.6 mm, min. hole 0.25 mm
-
HDI board, immersion gold + OSP
-
6L PTFE HDI high-frequency board, thickness 1.2 mm, immersion tin
Metal Base
Aluminum PCB

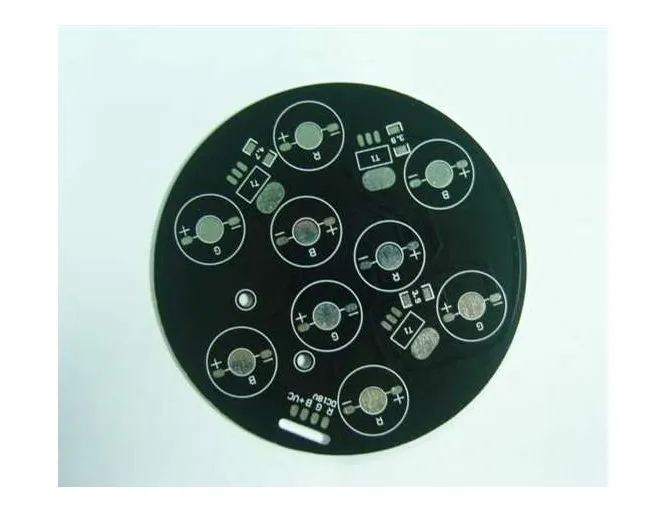

Aluminum-backed metal-core boards that move heat away from LEDs and power components.
-
Single-side road lamp aluminum PCB
-
Double-side aluminum PCB, thickness 2.0 mm, 1 oz, thermal conductivity 2.0
-
Single-side aluminum PCB, thickness 1.6 mm, 2 oz, lead-free HASL
Metal Base
Copper Base PCB
Copper-core boards for the highest thermal loads, including thermoelectric-separation designs.
-

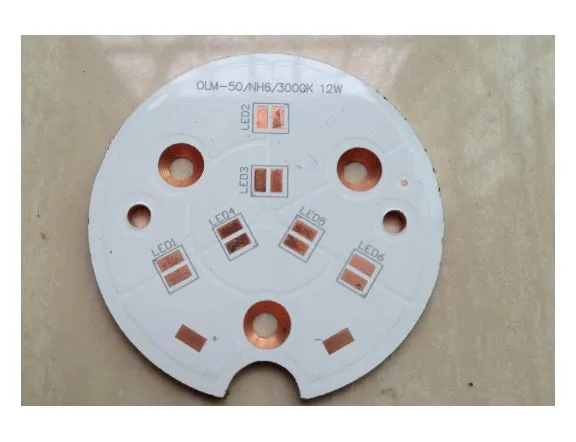

Single-side LED copper base PCB
-
Double-side copper base board, blind slot, thickness 4.0 mm
-
Single-side thermoelectric separation copper base PCB
PCB Material
Special Base Material PCB
Boards built on specialty laminates such as Arlon, CEM-1 and halogen-free FR4.
-
4L Arlon TC600 printed circuit board
-
6L CEM-1 immersion gold PCB, 1 oz, green, min. hole 0.25 mm
-
6L FR4 halogen-free OSP board, 1 oz
PCB Material
Black Core FR4 PCB
Black-core FR4 boards for light-blocking applications, including heavy-copper builds.
-
4L HASL black core FR4 circuit board
-
8L BGA black core FR4, solder mask bridge, immersion gold
-

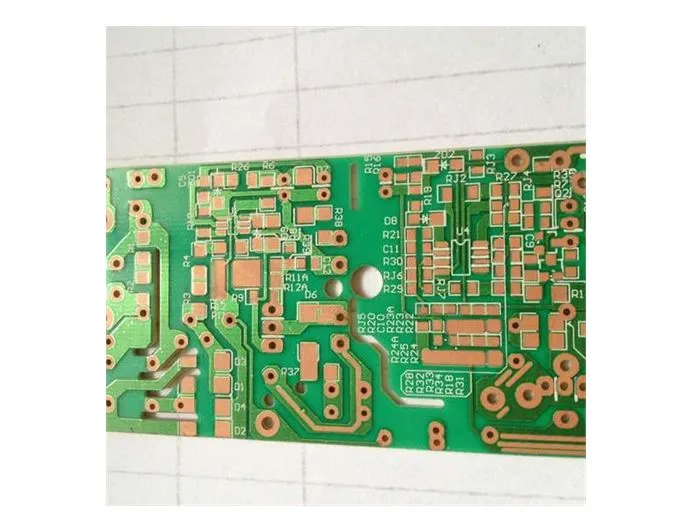

6L 6 oz heavy copper black core FR4
PCB Material
High-Tg PCB
High glass-transition (Tg 170) laminates that stay stable through lead-free soldering and high operating temperatures.
-

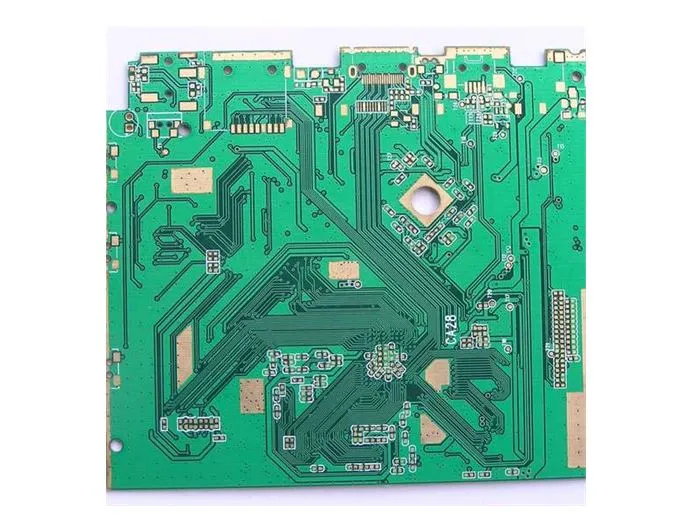

4L high-Tg TG170 immersion gold PCB
-
6L high-Tg TG170 immersion gold PCB, 4/4 mil
-
8L impedance-controlled high-Tg PCB
PCB Material
Rogers PCB
Rogers high-frequency laminates for RF, microwave and high-speed signal designs.
-
Rogers 4003C immersion gold HDI PCB
-
Rogers 4350 immersion gold PCB, thickness 1.2 mm, min. hole 0.2 mm
-
Rogers 5880 HASL board, min. hole 0.25 mm
PCB Technology
Unbalanced Copper PCB
Boards with different copper weights across layers, built with controlled warpage.
-
4L BGA unbalanced copper board, 3.5/3 mil, immersion gold
-
6L unbalanced copper PCB, 3/4 mil, solder bridge 0.1 mm
PCB Technology
Gold Finger PCB
Hard-gold edge connectors for boards that plug into slots and survive repeated insertion.
-

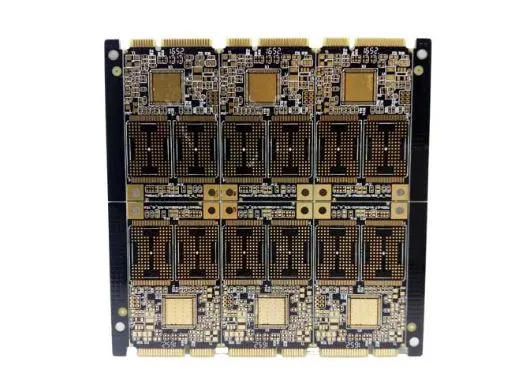

8L HDI impedance gold-finger board
-

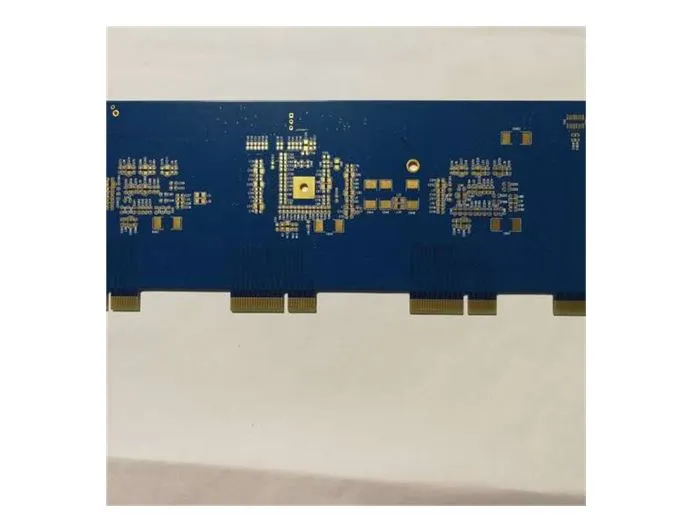

6L TG170 gold-finger PCB
PCB Technology
Immersion Gold PCB
Flat, solderable ENIG finish suited to fine-pitch and BGA components.
-
2L 0.5 mm FR4 blue keyboard immersion gold PCB
-
4L high-Tg immersion gold PCB
Rigid-Flex PCB
Rigid and flexible sections in one board, removing connectors and cables from the assembly.
-
4L rigid-flex board, rigid 0.6 mm / flex 0.1 mm, immersion gold 2 µm
-
Rigid-flex PCB, rigid thickness 1.2 mm
IC Substrate
Substrate boards that connect IC dies to the main PCB.
-
Immersion gold + OSP IC substrate board
-
4L 2 oz green immersion gold IC substrate board
Multilayer Board
Multilayer FR4 boards from 4 layers up to 40+, with controlled impedance and heavy-copper options.
-
8L lead-free HASL PCB, thickness 1.6 mm, 3 oz
-
6L FR4 immersion gold board, thickness 1.6 mm
Application PCB
Consumer Electronics PCB
Boards for consumer products, from heavy-copper power boards to multilayer control boards.
-
2L 6 oz FR4 circuit board
-
8L immersion gold board, thickness 1.45 mm
-
4L blue FR4 immersion silver PCB
-
2L lead-free HASL circuit board, thickness 1.6 mm
Have a board to build?
Send us your Gerber files and requirements. Our team will review your specifications and get back to you with a quote.
